Crawler bulldozer KRON D23

Operational weight

23500 kg

Track width

560 mm

Blade volume

6,4 m3
  • The bulldozer is equipped with a powerful, energy-saving, environmentally friendly engine with low noise;
  • Power shift hydraulic box with torque converter is ideal for all operating conditions;
  • High torque reserve and dry multi-plate clutch provide reliable dozer performance;
  • With thoughtful design, a comfortable operator's cabin allows you to work longer with less fatigue and higher productivity;
  • Depending on the needs of the enterprise, the user is offered a list of additional equipment: Straight blade, Waste blade, Angle blade, U-shaped blade (For coal) and ripper.

Description

Description

Описание

KRON D23 is a hydraulic driven bulldozer with a rated power of 175 kW (238 hp) suitable for general earthworks, construction, quarrying, agricultural work, bulk material handling, etc.

Data sheet

Data sheet

Model

D23

Track width, mm

560

Overall dimensions of the blade (Straight blade) WxH, mm

3725х1315

Blade volume (Straight blade), m3

6,4

Maximum deepening of the blade (Straight blade), mm

540

Ground clearance, mm

405

Ground pressure, MPa

0,077

Forward speed, km/h

11,2

Reversing speed, km/h

13,2

Transmission system

Planetary gear, multi-plate clutch, hydraulically actuated, forced lubrication by gear pump, 3 speeds forward and 3 speeds reverse

Engine

Engine

Manufacturer

CUMMINS

Model

NT855-C280S10

Rated power, kW

175

Rated speed, rpm

1800

Dimensions and weight

Dimensions and weight

Overall length, mm

5460

Overall width, mm

3725

Overall height, mm

3395

Operating weight (without additional equipment), t

23,5

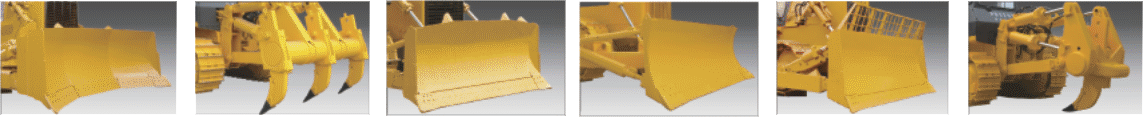

Optional equipment

Optional equipment

Label

  1. Air conditioning
  2. U blade
  3. 3-tooth ripper
  4. Straight blade
  5. Angle Blade
  6. Waste dump
  7. single ripper
